APC MATRIX-UPS MX3000
   Our Price: $1750.95

Please call to Order

856-228-3833

apcbattery@yahoo.com

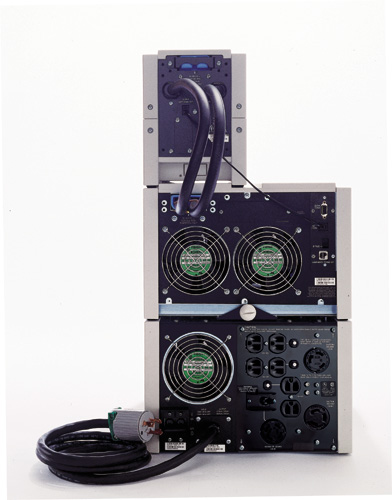

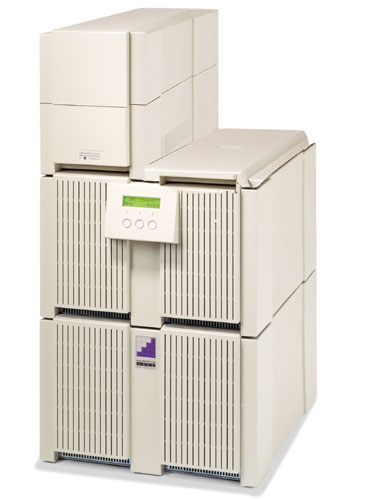

REFURBISHED APC MATRIX UPS MX3000

All refurbished UPS's come fully tested with a 90 day replacement performance guaranteed warranty.
All of our batteries come brand new and factory fresh, with a 2 year warranty. Does not include cables, software or any accessories.

BRAND NEW BATTERIES WITH 2 YEAR WARRANTY


Model: MX3000

APC Matrix-UPS 3kVA 208V/240V In 120/208/240V Out

Part Number: MX3000

Output

Output Power Capacity 2250 Watts / 3000 VA

Max Configurable Power 2250 Watts / 3000 VA

Nominal Output Voltage 120V,208V

Efficiency at Full Load 93%

Output Voltage Distortion Less than 5% at full load

Output Frequency (sync to mains) 57 - 63 Hz for 60 Hz nominal

Crest Factor up to 5 : 1

Waveform Type Sine wave

Output Connections

(6) NEMA 5-15R

(1) NEMA L14-30R

(2) NEMA L6-30R

Bypass : Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage 208V

Input Frequency 60 Hz +/- 5 Hz

Input Connections

NEMA L6-30P

Cord Length 6 feet (1.83 meters)

Input voltage range for main operations 156 - 252 (208) / 176 - 282 ( 240V)V

Other Input Voltages 240

Batteries & Runtime

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time 1.60 hour(s)

Replacement battery cartridge note : There is no RBC available for the SmartCell. If a SmartCell-XR is being used and needs an RBC, then an RBC14 may be purchased.

Communications & Management

Interface Port(s) DB-9 RS-232,SmartSlot

Available SmartSlot™ Interface Quantity 1

Control panel : Multi-function LCD status and control console

Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO) : Yes

Physical

Maximum Height 26.90 inches (683 mm)

Maximum Width 13.80 inches (351 mm)

Maximum Depth 17.80 inches (452 mm)

Net Weight 208.00 lbs. (94.56 kg)

Shipping Weight 243.00 lbs. (110.46 kg)

Color Beige

Environmental

Operating Environment 32 - 104 °F (0 - 40 °C)

Operating Relative Humidity 0 - 95%

Operating Elevation 0-10000 feet (0-3000 meters)

Storage Temperature 5 - 113 °F (-15 - 45 °C)

Storage Relative Humidity 0 - 95%

Storage Elevation 0-50000 feet (0-15000 meters)

Audible noise at 1 meter from surface of unit 60.00 dBA

Online Thermal Dissipation 540.00 BTU/hr

Conformance

Regulatory Approvals CE,CSA,UL 1778,FCC Part 15 Class A

**The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
